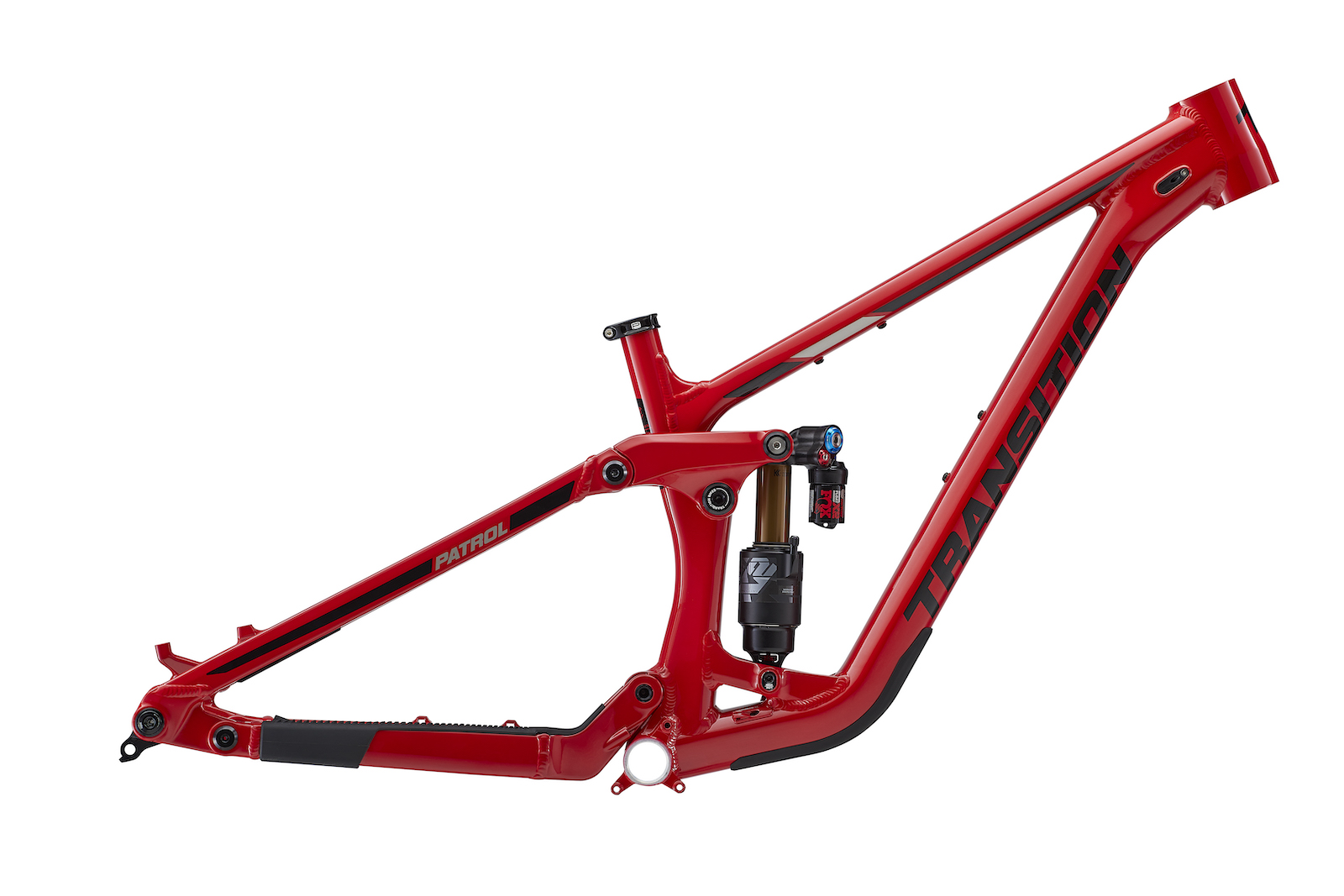

La nuova Patrol è qui! Una bici con cui potrete trovare il vostro limite in bike park o nell''enduro racing. Geometria SBG con due configurazioni Low and High per la massima versatilità e divertimento.
REAR TRAVEL: 160mm (Compatible with 170mm)
FRONT TRAVEL: 160mm (Compatible with 170mm single crown fork or dual crown forks)
WHEEL SIZE: 29" Front / 27.5" Rear
SIZES: SM, MD, LG, XL
FRAME BEARINGS: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN: 574mm at 160mm
FORK OFFSET: 44mm
REAR SHOCK SIZE: 205mm x 60mm (Compatible with 205mm x 65mm)
SHOCK HARDWARE: Trunnion Mount Top / 30mm x 8mm Bottom
HEADSET (TOP): 56mm Zero Stack
HEADSET (BOTTOM): 56mm Zero Stack
BB SHELL: 73mm BSA Threaded
CHAINLINE: 52mm
REAR BRAKE MOUNT: 180mm Post Mount, Max Rotor Size 223mm
DERAILLEUR HANGER: SRAM UDH
REAR AXLE: Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS: ISCG05
SEATPOST DIAMETER: 31.6mm
SEAT CLAMP: Carbon: 37.0mm Alloy: 34.9mm
MAX SEATPOST Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm
MAX CHAINRING SIZE: 34T Standard Single Ring (Based on 52mm Boost Chainline)
MAX TIRE SIZE: 27.5 x 2.6
REAR SHOCK SAG: 160mm/60mm: 16-20mm (27-33%) 170mm/65mm: 18-22mm (28-34%)
