| EN norm |
EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm |

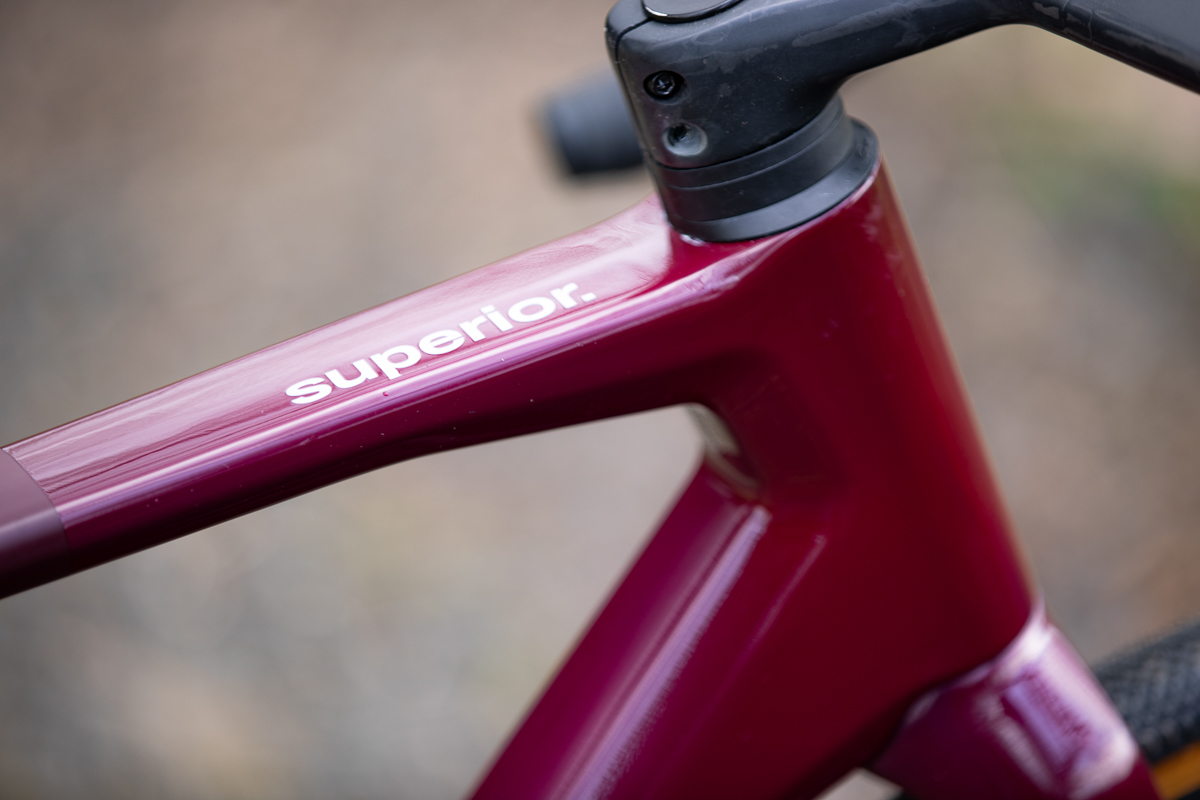

| FRAME |
Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready. |
| FORK |
X-ROAD Carbon Fork |
| BOTTOM BRACKET |
SHIMANO BB-RS500PB, PressFit, shell 41x86.5mm |
| HEADSET |
ACROS AIX-525S, ICR, OD56, IS52/28.6 - 40IPS, Stainless Bearings |
| FRONT AXLE |
SB02-LT, TA12x125, M12xP1.5x10L, Light, Black |
| REAR AXLE |
SB02-LT, TA12x165, M12xP1.5x14L, Light, Black |
| SHIFTERS RIGHT |
SHIMANO GRX RX820, 12-speed |

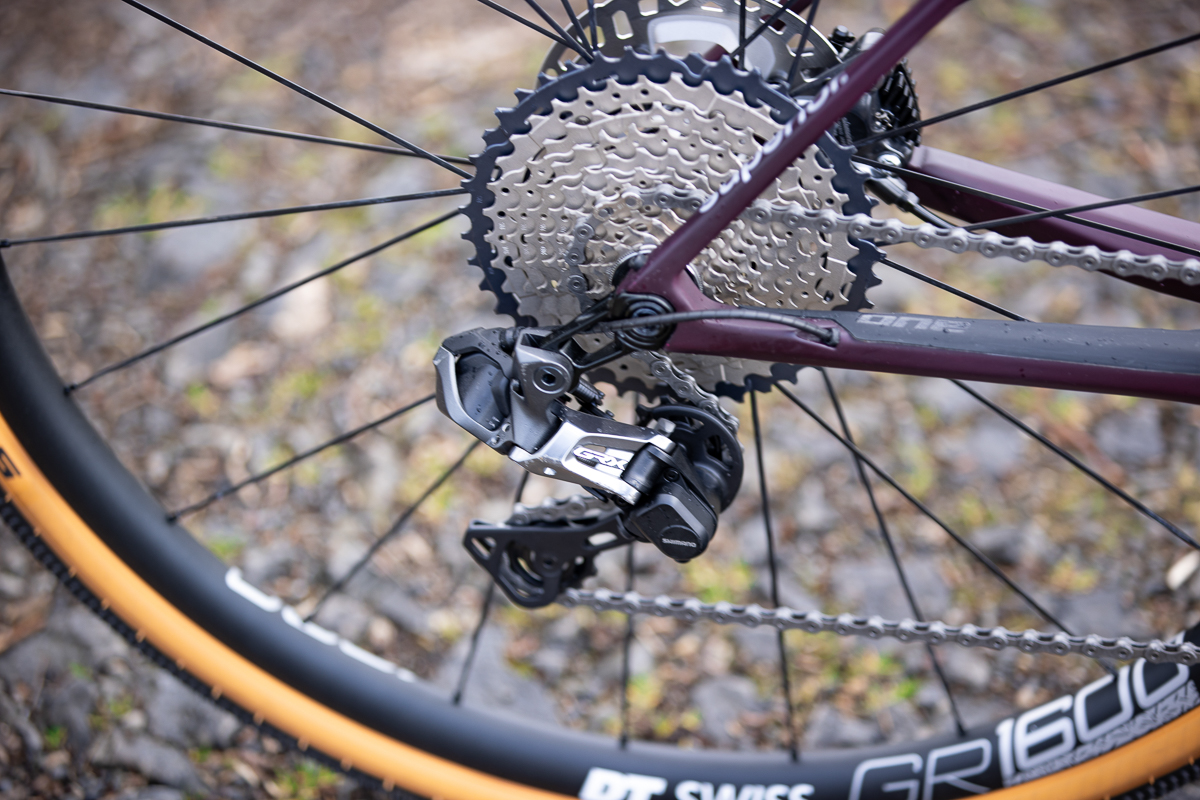

| REAR DERAILLEUR |
SHIMANO GRX RD-RX822, Shadow Plus Design |
| CRANKSET |
SHIMANO GRX FC-RX820, Hollowtech II, 42T |
| CASSETTE |
SHIMANO XT CS-M8100, 12-speed, 10-45T |
| CHAIN |
SHIMANO XT CN-M8100 |
| BRAKE FRONT |
SHIMANO GRX RX820, hydraulic disc brake |
| ROTOR FRONT |
SHIMANO RT-MT800, 160mm |
| BRAKE REAR |
SHIMANO GRX RX820, hydraulic disc brake |
| ROTOR REAR |
SHIMANO RT-MT800, 140mm |
| WHEELSET FRONT |
DT Swiss GR 1600 SPLINE®, CL, 12x100mm, Tubeless Ready |
| WHEELSET REAR |
DT Swiss GR 1600 SPLINE®, CL, 12x142mm, SH12, Tubeless Ready |

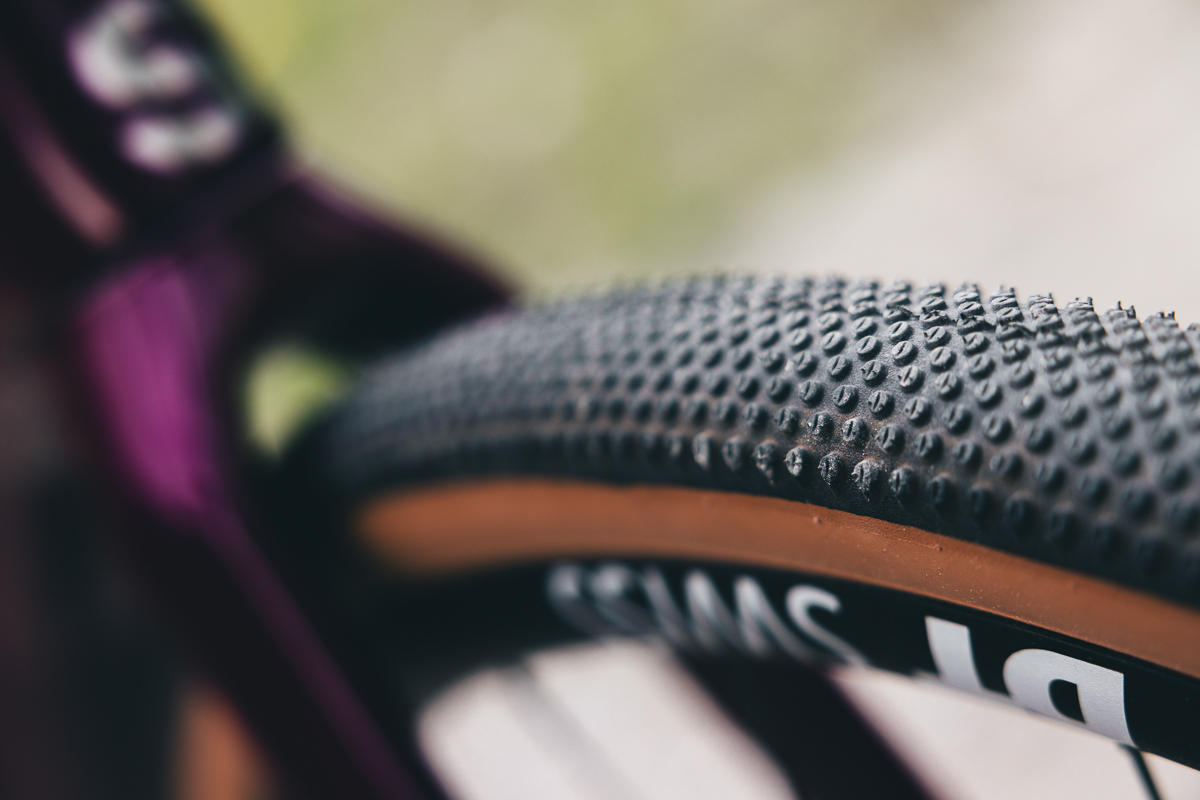

| TYRE FRONT |
Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX |

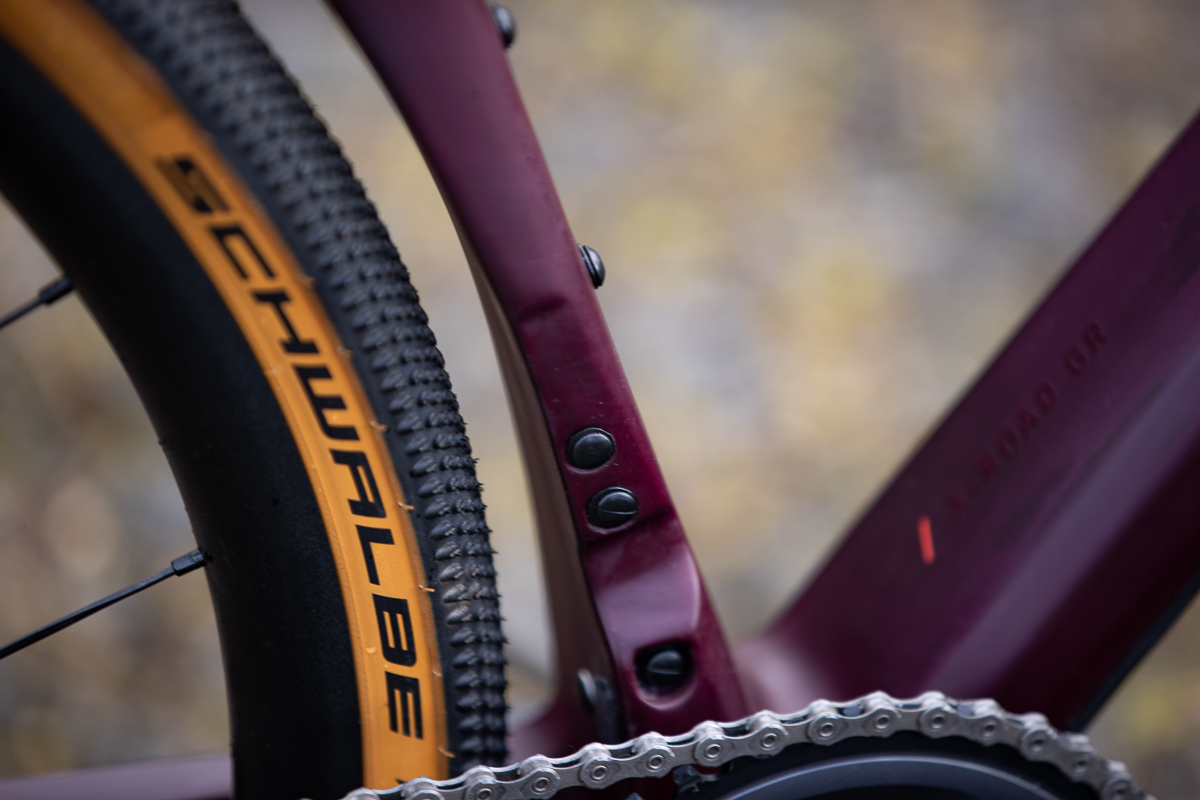

| TYRE REAR |
Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX |

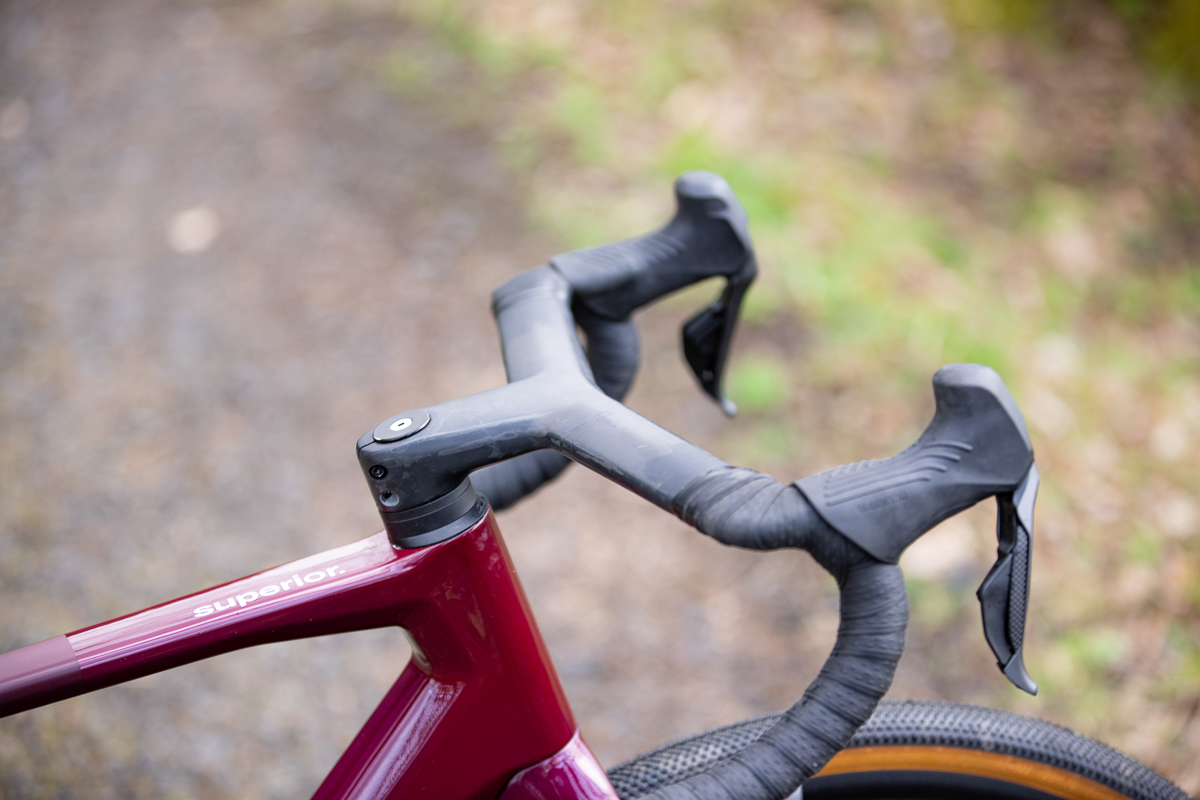

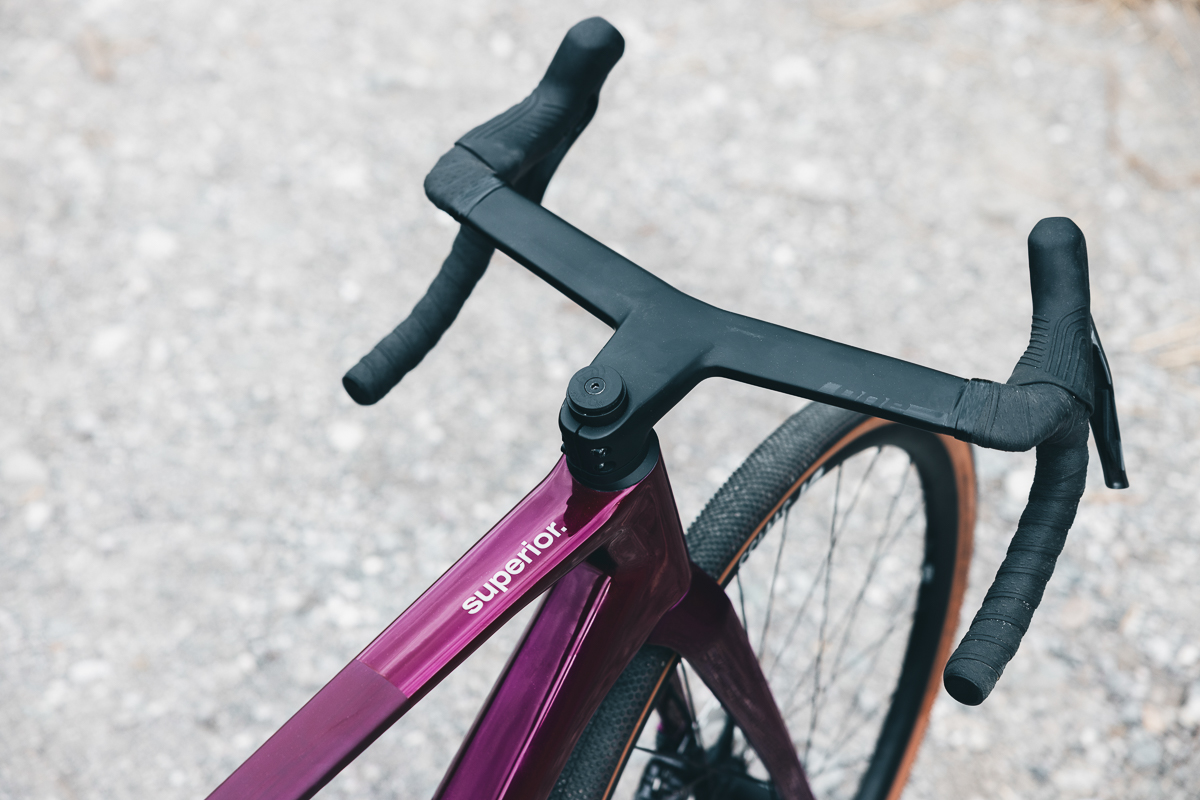

| HANDLEBAR |
ONE Carbon Integrated Cockpit ICR |
| GRIPS LEFT |
ONE Handlebar Tape |
| SADDLE |
Fizi:k Vento Argo R5, Alloy |
| SEATPOST |
ONE Aero Carbon |
| SEATPOST CLAMP |
Frame Integrated Clamp |
