| ISO norm |
ISO 4210-2 Road Racing bicycles |
| EN norm |
EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm |
| LOAD CAPACITY |
120 Kg |
| FRAME |
SU-51-01, Carbon XR Race High Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready. |

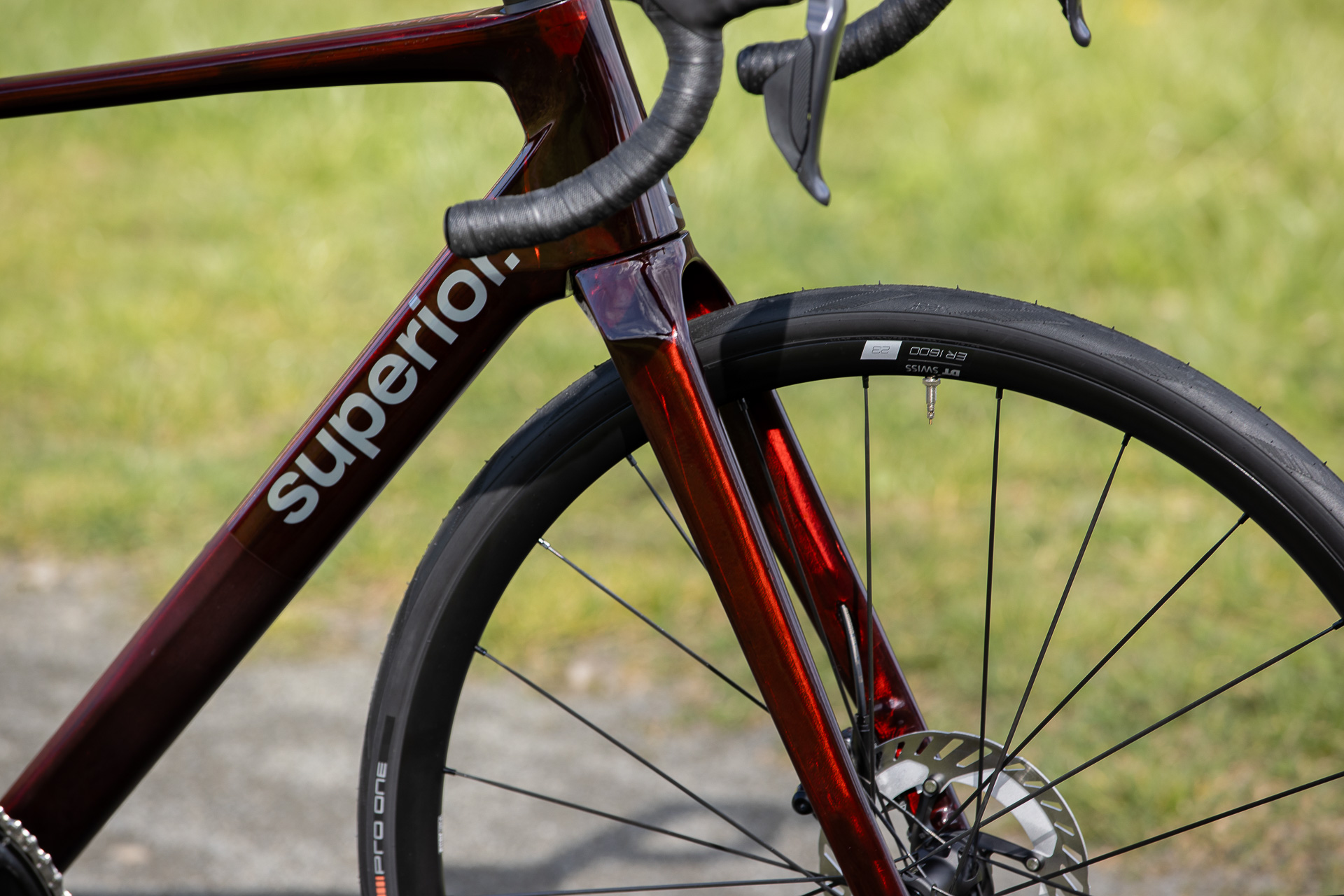

| FORK |
XR Hi Modulus Carbon Fork |
| BOTTOM BRACKET |
SHIMANO BB-72-41B, PressFit, shell 41x86.5mm |
| HEADSET |
ACROS AIX-525R3S, ICR, OD56, IS52/28.6 - 40IPS |
| FRONT AXLE |
SB02-LT, TA12x119, M12xP1.5x8.5L, Light, Black |
| REAR AXLE |
SB02-LT, TA12x171.5, M12xP1.0x14.5L, Light, Black |
| SHIFTERS LEFT |
SHIMANO ULTEGRA R8170, Di2, 2-speed |
| SHIFTERS RIGHT |
SHIMANO ULTEGRA R8170, Di2, 12-speed |
| FRONT DERAILLEUR |
SHIMANO ULTEGRA FD-R8150, Down Swing, Brazed-On Type |
| REAR DERAILLEUR |
SHIMANO ULTEGRA RD-R8150, Shadow Design |

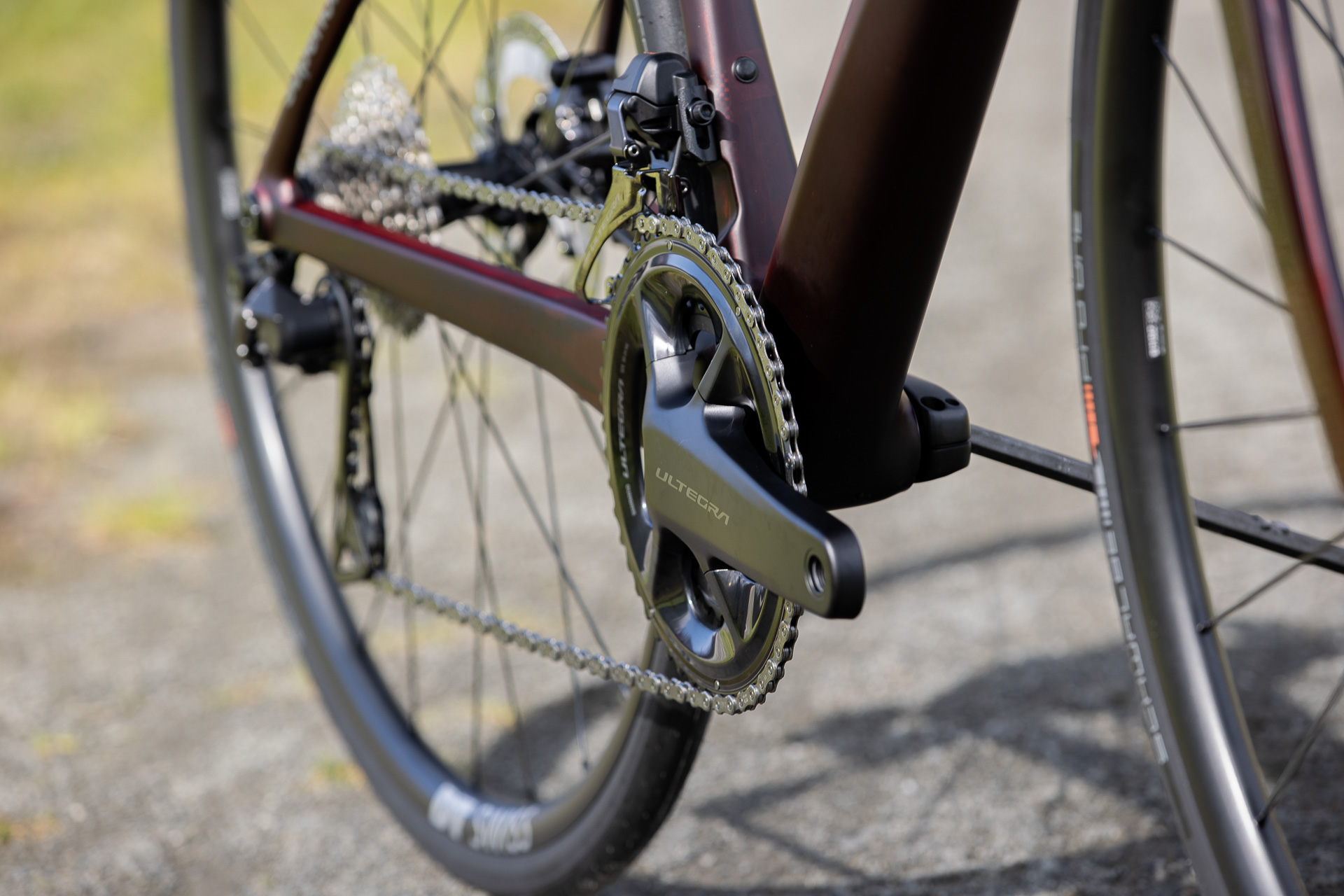

| CRANKSET |
SHIMANO ULTEGRA FC-R8100, Hollowtech II, 50-34T |
| CASSETTE |
SHIMANO ULTEGRA CS-R8101, 12-speed, 11-34T |
| CHAIN |
SHIMANO XT CN-M8100 |
| BRAKE FRONT |
SHIMANO ULTEGRA R8170, hydraulic disc brake |
| ROTOR FRONT |
SHIMANO RT-CL800, 160mm |
| BRAKE REAR |
SHIMANO ULTEGRA R8170, hydraulic disc brake |
| ROTOR REAR |
SHIMANO RT-CL800, 140mm |
| WHEELSET FRONT |
DT Swiss ER 1600 SPLINE®, CL, 12x100mm, Tubeless Ready |
| WHEELSET REAR |
DT Swiss ER 1600 SPLINE®, CL, 12x142mm, SH11, Tubeless Ready |
| TIRE FRONT |
Schwalbe Pro One Evo, V-Guard, TL-Easy, 30-622, ADDIX Race |
| TIRE REAR |
Schwalbe Pro One Evo, V-Guard, TL-Easy, 30-622, ADDIX Race |

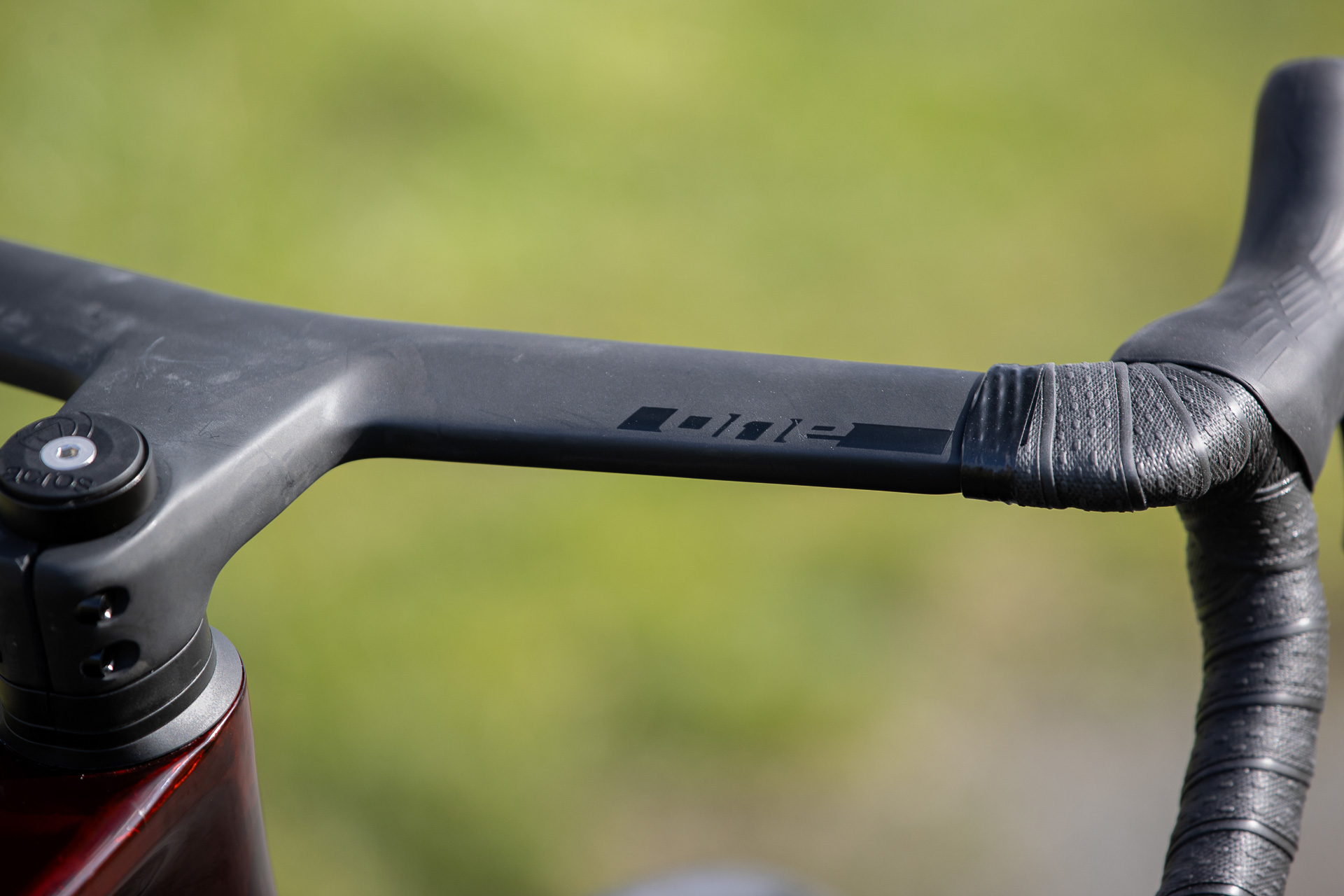

| HANDLEBAR |
ONE Carbon Integrated Cockpit ICR |
| GRIPS LEFT |
ONE Handlebar Tape |
| SADDLE |
Fizi:k Vento Argo R5, Alloy |
| SEATPOST |
ONE Aero Carbon |
| SEATPOST CLAMP |
Frame Integrated Clamp |
| REAR LIGHT |
Litemove Rear Visibility Light, Red |
