| MAX. TORQUE |
55Nm / 300% |
| SPEED |
25km/h |
| ISO norm |
EN 15194 Standard for ‘Electronically Power Assisted Cycles’ (EPAC) |

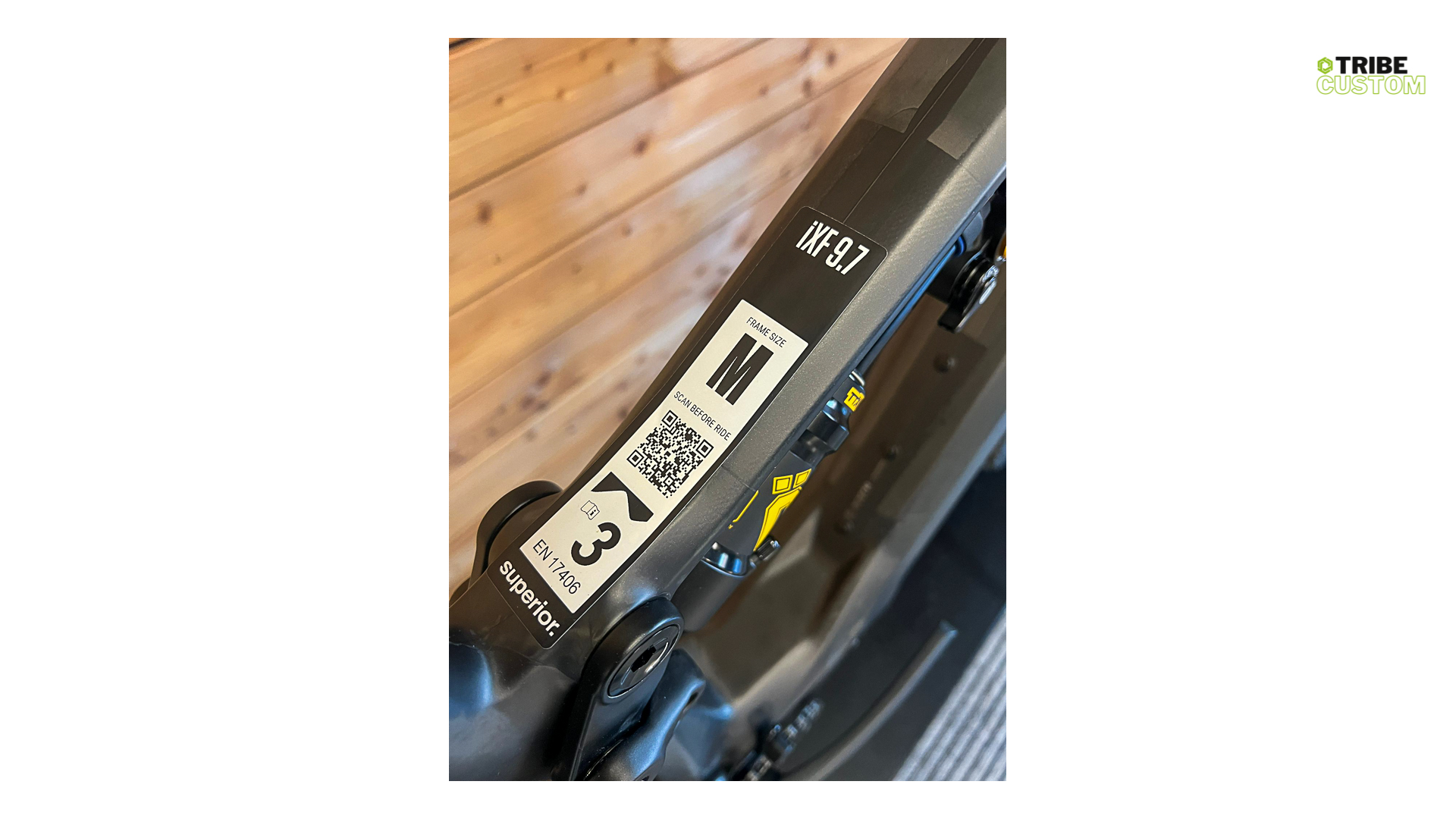

| EN norm |
EN17406 Condition 3 For rough Off-Road riding and jumps less than 60cm |
| MOTOR |
BOSCH Performance SX, 55Nm |
| CHARGER |
BOSCH 2A |
| BATTERY |
BOSCH CompactTube, 400Wh |
| DISPLAY |
BOSCH Mini Remote |
| FRAME |
SU-E10-01, Carbon MTB DC; Advanced Down Country Geometry, Travel 140 mm, Integrated Cable routing, BB92, 3D one pice link, Carbon swingarm, UDH dropout, Boost Thru Axle 148x12 mm, Dropped seat post ready |

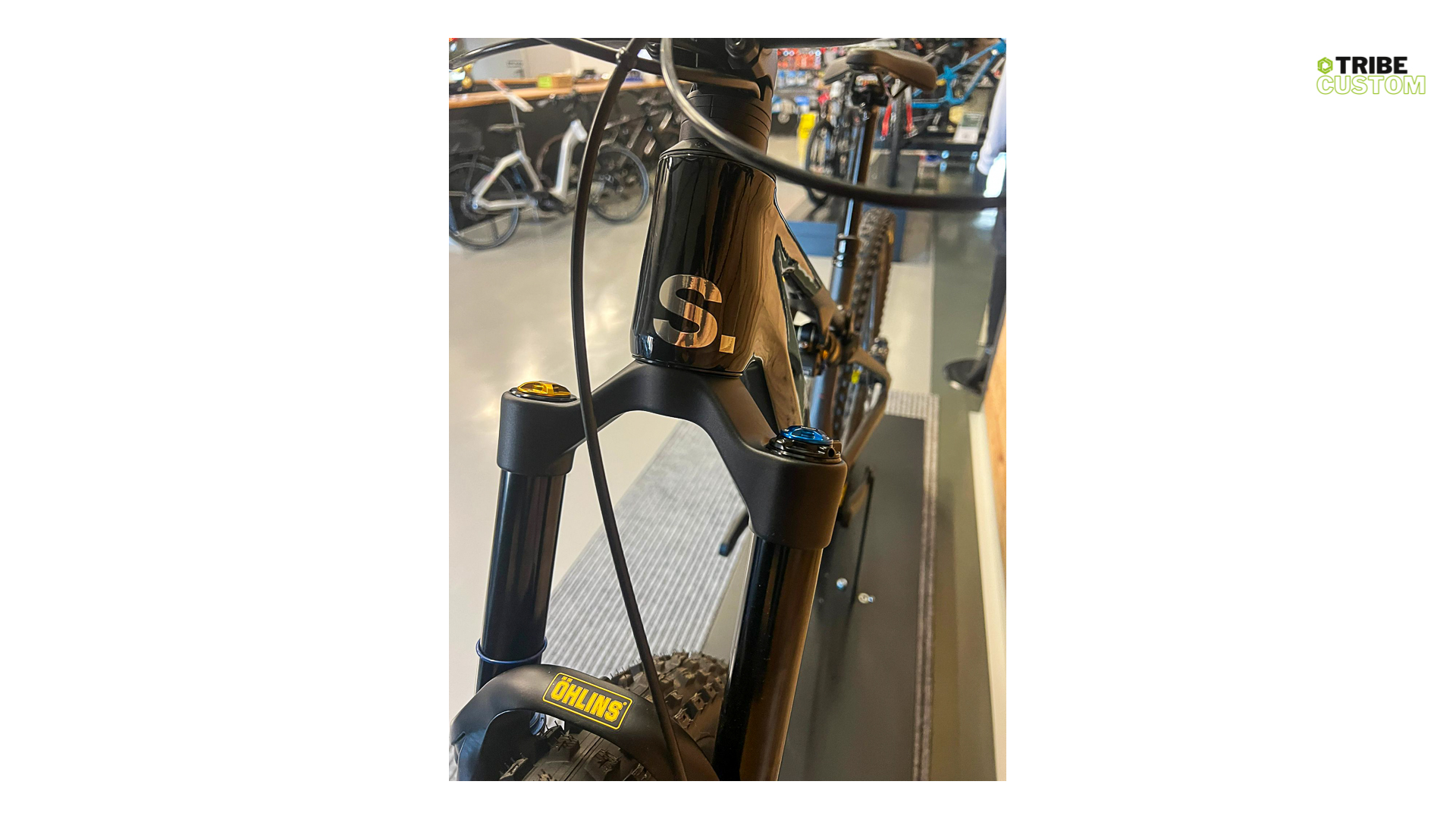

| SUSPENSION FORK |
OHLINS RXF 36 m.2 160mm |

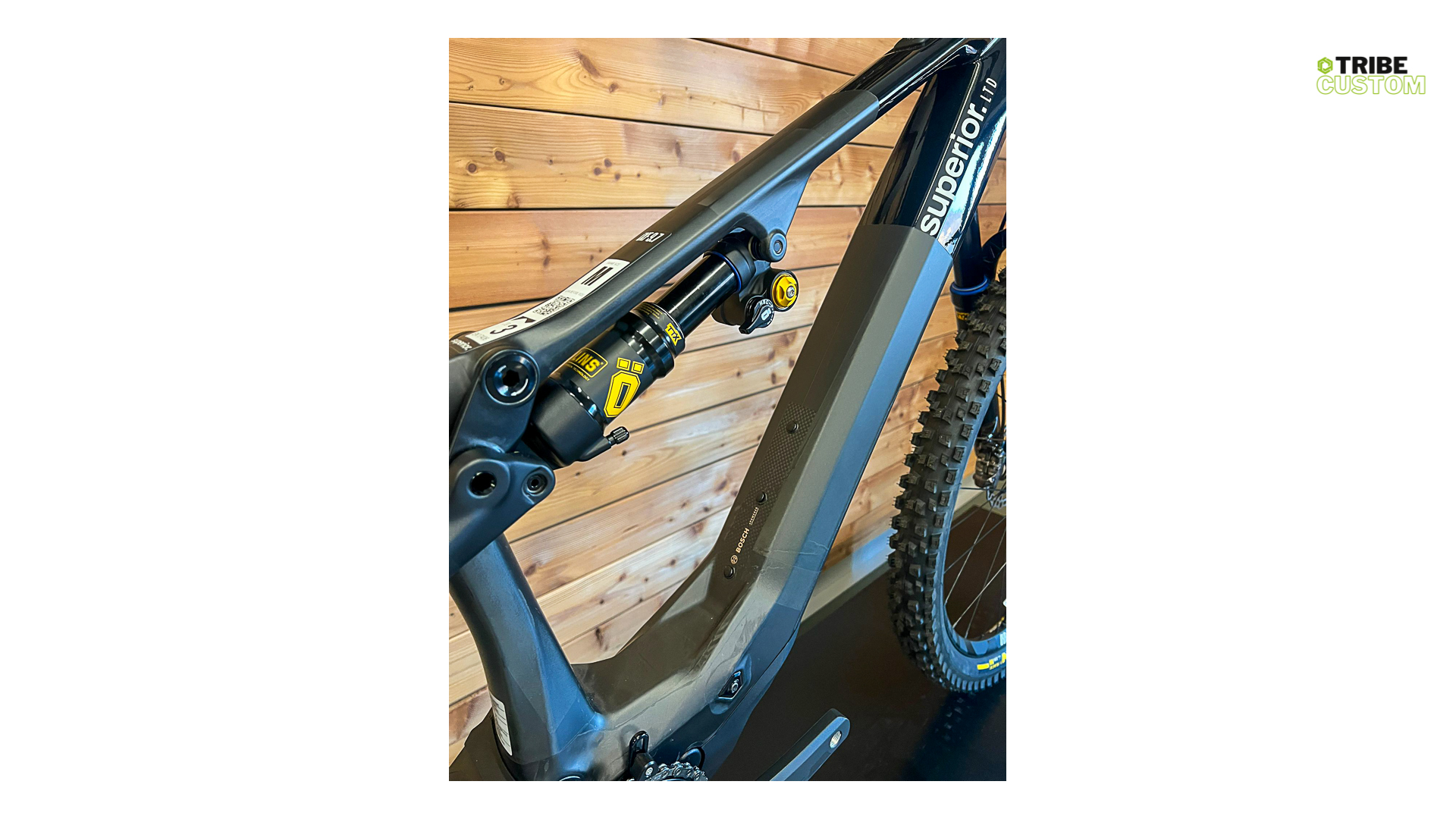

| REAR SHOCK |
OHLINS TTX Air, size 210x55mm |
| HEADSET |
ACROS AZX-596S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings |
| REAR AXLE |
SB01, TA12x175.5, M12xP1.0x14.5mm, Black |
| SHIFTERS RIGHT |
SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed |
| REAR DERAILLEUR |
SHIMANO XT RD-M8100, Shadow Plus Design |
| CRANKSET |
ONE Race, Alloy |
| CHAINRING |
ONE Race, 34T |
| CASSETTE |
SHIMANO DEORE CS-M6100, 12-speed, 10-51T |
| CHAIN |
SHIMANO DEORE CN-M6100 |

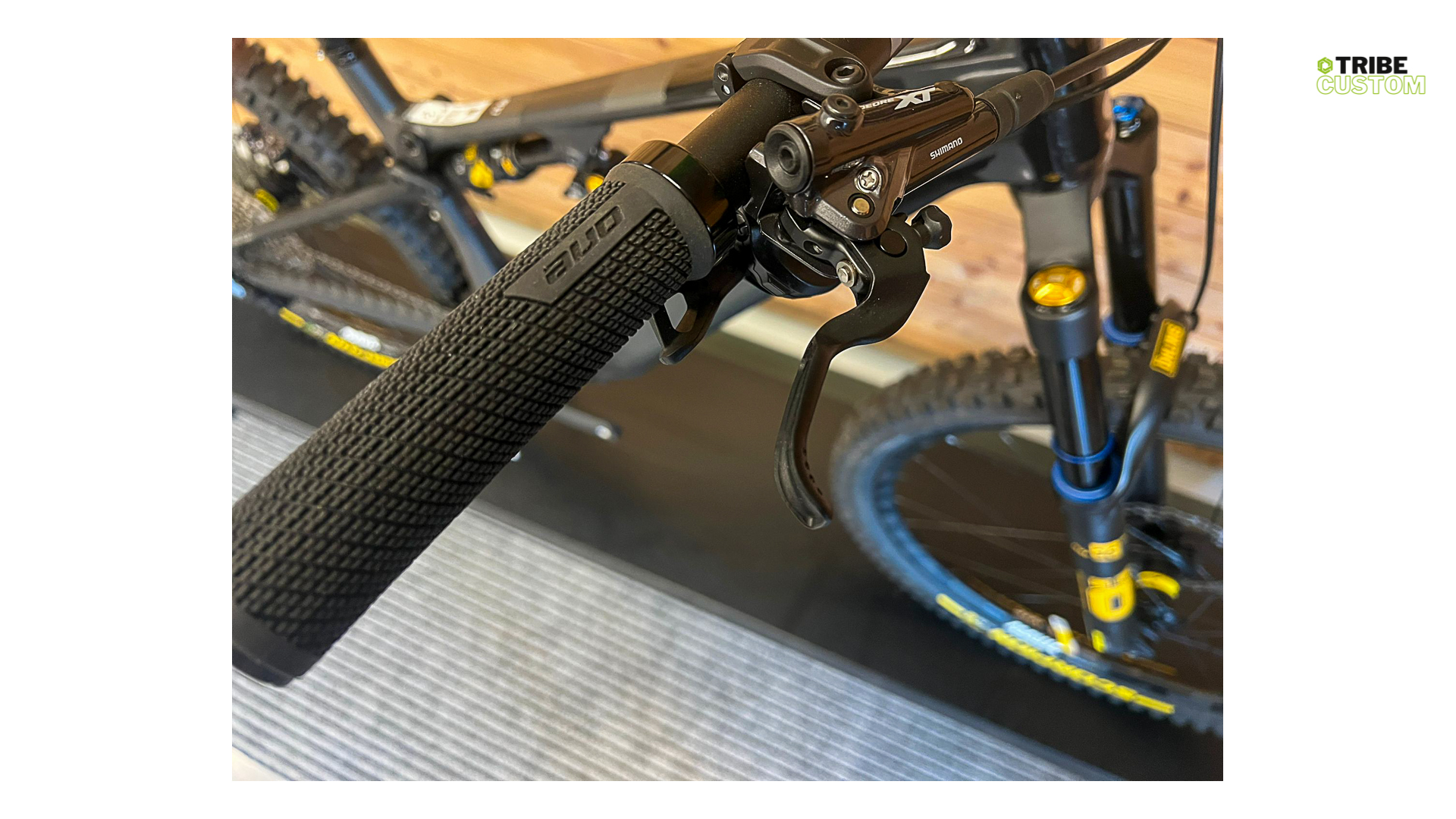

| BRAKE FRONT |
SHIMANO XT M8120, 4 piston, hydraulic disc brake |
| ROTOR FRONT |
SHIMANO SM-RT64, 180mm |
| BRAKE REAR |
SHIMANO XT M8120, 4 piston, hydraulic disc brake |
| ROTOR REAR |
SHIMANO SM-RT64, 180mm |
| WHEELSET FRONT |
MAVIC DEEMAX DH, 15x110mm, Tubeless Ready |
| WHEELSET REAR |
MAVIC DEEMAX DH, 12x148mm, SH12, Tubeless Ready |
| TYRE FRONT |
PIRELLI RACE Enduro M, 29x2.50", Dual Wall |
| TYRE REAR |
PIRELLI RACE Enduro T, 29x2.50", Dual Wall |
| STEM |
Satori URSA ML 35x35mm |
| HANDLEBAR |
ANVL Mandrel Rise 30 |
| GRIPS LEFT |
ONE Race, Lock-On |
| GRIPS RIGHT |
ONE Race, Lock-On |
| SADDLE |
Fizi:k Aidon X5, Alloy |
| SEATPOST LEVER |
SHIMANO SL-MT500-L, Seat post lever |
| SEATPOST |
ONE Sport Dropper Post, Alloy, 30.9mm |
| SEATPOST CLAMP |
ONE CC-080A, 34.9mm, Black |
