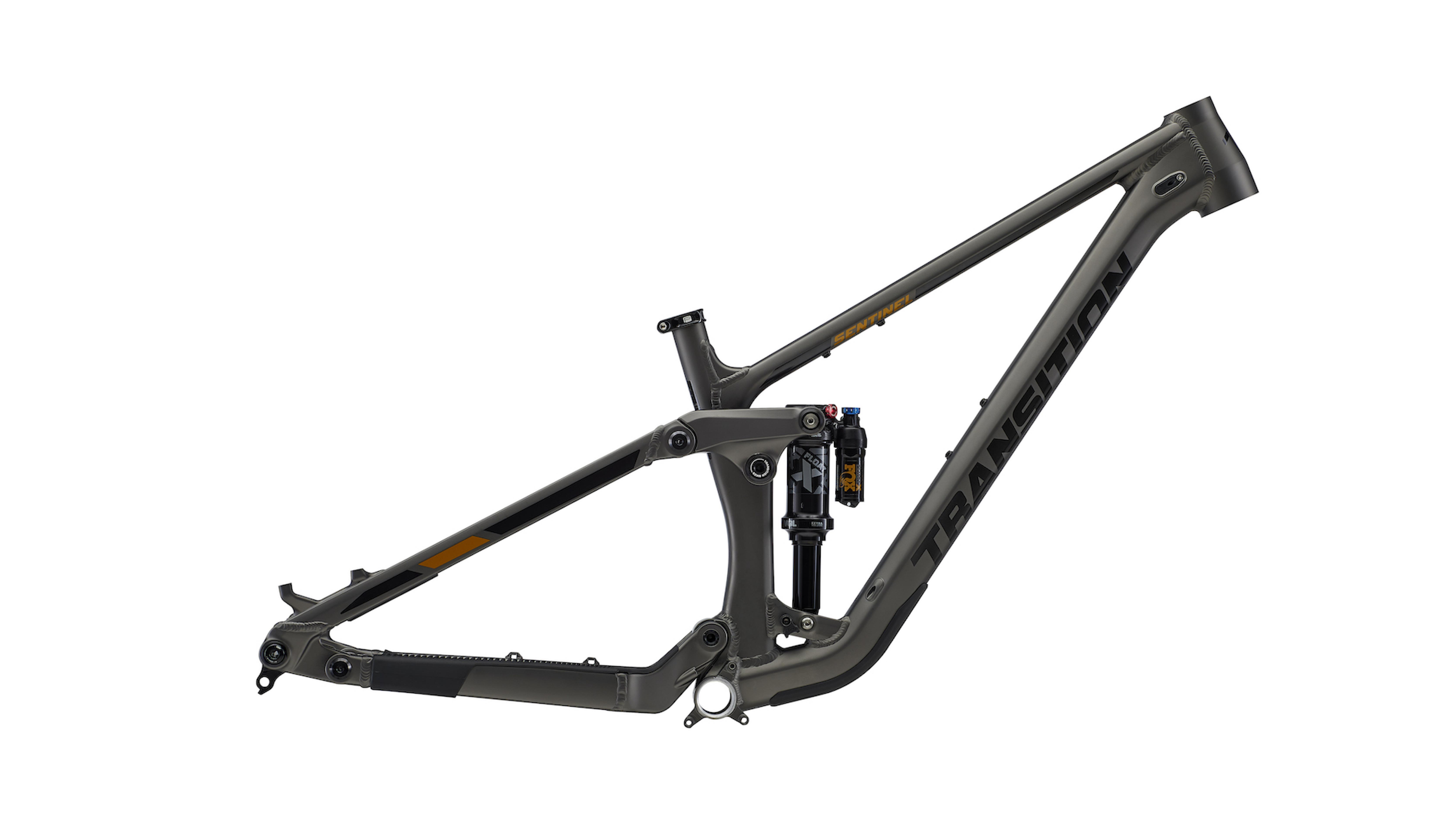

La Sentinel è la bici full più polivalente di casa Transition. Ruota 29, escursione 150-160, perfetto compromesso tra performance in discesa e pedalabilità per chi vuole alternare la giornata di shuttle o bike park, alla gara di enduro o all''uscita in montagna.
AMMORTIZZATORE Fox Float X Performance Elite 2 Position (150mm Travel/205x62.5mm)
SERIE STERZO FSA INCLUSA
REAR TRAVEL: 150mm (Compatible with 140mm)
FRONT TRAVEL: 160mm
WHEEL SIZE: 29"
SIZES: SM, MD, LG, XL, XXL
FRAME BEARINGS: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN: 574mm (Includes headset)
FORK OFFSET: 42-44mm
REAR SHOCK SIZE: 205mm x 62.5mm (Compatible with 205mm x 57.5mm)
SHOCK HARDWARE: Trunnion Mount Top / 25mm x 8mm Bottom
HEADSET (TOP): 44mm Zero Stack
HEADSET (BOTTOM): 56mm Zero Stack
BB SHELL: 73mm BSA Threaded
CHAINLINE: 52mm
REAR BRAKE MOUNT: 180mm Post Mount, Max Rotor Size 203mm
REAR AXLE: Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS: ISCG05
SEATPOST
DIAMETER: 31.6mm
SEAT CLAMP: 34.9mm
MAX SEATPOST INSERTION: Small 240mm | Medium 270mm | Large 310mm | XL 335mm | XXL 360mm
MAX CHAINRING SIZE: 32T Standard Single Ring
MAX TIRE SIZE: 29 x 2.6
REAR SHOCK SAG: 150mm/62.5mm: 16-20mm (26-32%)
140mm/57.5mm: 15-19mm (26-33%)
